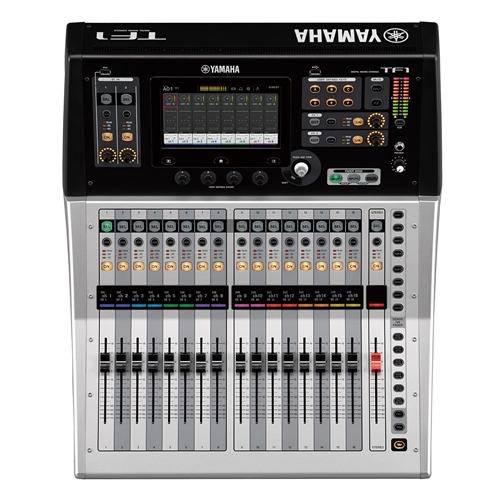

Yamaha TF1 Ditigal Mixer - 16 Channels

The "TF1 mixer" refers to the Yamaha TF1 Digital Mixing Console. It's the most compact model in Yamaha's TF series, designed to offer intuitive operation, powerful digital processing, and excellent sound quality, making it suitable for a wide range of applications from live bands and churches to corporate events and small theatres. The "TF" stands for "TouchFlow Operation," highlighting its highly tactile and user-friendly interface centered around a large touchscreen.

Here are the key features and specifications of the Yamaha TF1:

Core Specifications:

• Channels: 16 analog input channels (mono) + 2 stereo input channels + 16 digital return channels via USB/Dante (optional).

• Buses: 20 Mix Buses (8 mono/stereo Mix + 6 Matrix + 1 Stereo + 1 Sub).

• DCA Groups: 8 DCA groups.

Input/Output (I/O):

• Analog Inputs:

  • 16 XLR/TRS Combo jacks (Mic/Line inputs), featuring Yamaha's acclaimed D-PRE microphone preamps, known for their transparent and musical sound.

  • 2 Stereo Analog Inputs (TRS Line jacks).

• Analog Outputs:

  • 8 XLR Analog Omni Outputs (configurable for mixes, matrix, stereo, etc.).

• Digital I/O:

  • USB 2.0 (USB to Host): For multi-track recording (34x34 channels) and playback (via DAW or Steinberg Nuendo Live).

  • Optional expansion slot for NY64-D Dante I/O Card: Allows for 64-in/64-out Dante network audio, enabling connection to R Series I/O racks for stage boxes (e.g., Tio1608-D) and expanded channel count.

TouchFlow Operation & Interface:

• Large Touch Panel: Central to the mixer's operation is a large, high-resolution multi-touch display, allowing for intuitive navigation, mixing, and control via touch gestures (pinch, swipe).

• Touch & Turn Knob: A physical "Touch & Turn" knob for fine adjustments of parameters selected on the touch screen.

• GainFinder: A feature that helps set optimum input gain quickly and accurately.

• 1-knob COMP & 1-knob EQ: Simplified, effective controls for compression and equalization, making it easy for even novice users to achieve great sound. More detailed controls are also available for experienced users.

Processing & Effects:

• Powerful DSP: Comprehensive digital processing on all channels, including gates, compressors, 4-band parametric EQ, and more.

• FX Processors: Two dedicated multi-effects processors (SPX II effects) with 19 different effects types (reverb, delay, modulation, etc.).

• GEQ: 15-band graphic EQ on main outputs and mix buses.

Key Features for Live Sound:

• Scene Memory: Allows saving and recalling complete mixer setups, essential for quick changes between songs, acts, or venues.

• User Defined Keys: Programmable buttons for quick access to frequently used functions.

• User Defined Knobs: Assignable knobs for custom control.

• DCA Groups: For easy control of multiple channels simultaneously.

• Yamaha D-PRE Preamps: High-quality microphone preamps ensure excellent signal integrity from the source.

Software & Network Integration:

• TF Editor (PC/Mac): Software for offline setup, online control, and archiving.

• StageMix (iPad): An iPad app for remote control of the mixer, allowing engineers to mix from anywhere in the venue.

• MonitorMix (iPhone/iPod Touch): Personal monitor mixing app for musicians to control their own wedge mixes.

• QuickPro Presets: A library of optimized channel presets for various instruments and microphones, developed in collaboration with leading manufacturers like Audio-Technica, Sennheiser, and Shure.

Physical Design:

• Compact Size: Designed to be highly portable and fit into smaller spaces.

• Robust Build: Durable construction suitable for the demands of live performance.

The Yamaha TF1 is an excellent option for users seeking a powerful, intuitive, and high-quality digital mixer with professional features packed into a compact and user-friendly package, especially beneficial for operators who appreciate a tactile, touch-based workflow.
