Yamaha MG16XU Mixer - DSP -16 Imputs - Occupies 12RU - Rack Kit Included

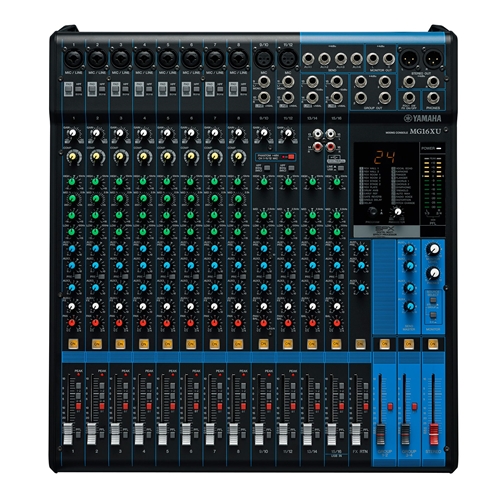

The Yamaha MG16XU is a highly versatile and robust 16-channel analog mixing console from Yamaha's popular MG series. As indicated by the "XU" suffix, it features both high-quality built-in SPX digital effects and a USB audio interface, making it an extremely popular choice for a wide range of applications, including live sound, home studio recording, streaming, and fixed installations.

It effectively combines professional audio quality with practical digital features, all within a durable and user-friendly package.

Here's a detailed breakdown of its key features and specifications:

Channels and Inputs:

• Total Channels: 16 input channels.

• Mono Mic/Line Inputs (XLR/TRS Combo Jacks): 8 channels (Channels 1-8).

  • Equipped with Yamaha's highly acclaimed "D-PRE" studio-grade discrete Class-A microphone preamps. These preamps are known for their transparent, natural, and low-noise characteristics, using an inverted Darlington circuit for superior performance.

  • +48V Phantom Power: Switchable, typically in groups (e.g., Channels 1-8), to power condenser microphones.

  • PAD Switch: 26 dB attenuation, essential for handling high-level input signals (e.g., close-miked drums, loud guitar amps) to prevent input clipping.

  • High-Pass Filter (HPF): 80 Hz, 12 dB/octave, to eliminate unwanted low-frequency rumble and improve clarity.

  • 1-Knob Compressors: On channels 1-8, providing simple yet effective dynamics control with a single rotary knob. This is a user-friendly feature for quickly optimizing vocal or instrument dynamics.

• Mono/Stereo Line Inputs (TRS/RCA Jacks): 2 channels (Channels 9/10 and 11/12). These versatile channels can accept either a single mono XLR microphone input (with D-PRE preamp, HPF, PAD, but no 1-knob compressor) or stereo TRS line inputs.

• Stereo Line Inputs (TRS/RCA Jacks): 2 dedicated stereo channels (Channels 13/14 and 15/16). Channel 15/16 can also serve as the USB return channel.

Outputs:

• Stereo Out: 2 x XLR balanced outputs and 2 x TRS balanced outputs for connecting to main PA speakers or recording devices.

• Monitor Out: 2 x TRS outputs for connecting to stage monitors or control room monitors.

• Phones Out: 1 x 1/4" stereo headphone jack with level control.

• AUX Sends: 4 x TRS outputs (AUX 1-4). These are highly versatile for creating separate monitor mixes for musicians, or for sending signals to external effects processors (one of these is typically hardwired as the FX send for the internal effects).

• GROUP Out: 4 x TRS outputs (GROUP 1-4). This allows for efficient sub-mixing of multiple channels (e.g., all drums, all vocals, or all guitars) to a single stereo or mono group, providing more comprehensive control over the overall mix.

Buses:

• 1 Stereo Bus

• 4 GROUP Buses (for flexible sub-mixing)

• 4 AUX Buses (for monitor mixes or external effects, one dedicated to internal FX)

Processing & Control:

• Channel EQ:

  • 3-band EQ (High, Mid, Low) with sweepable mid-frequency on mono channels (1-12): This offers precise tonal control for instruments and vocals, allowing you to cut or boost specific frequencies.

  • 2-band EQ (High, Low) on stereo channels (13-16).

• Faders: All input channels, group masters, and the stereo master feature smooth-action 60mm faders for tactile and accurate level control.

• High-Grade SPX Digital Effects: Built-in effects processor with 24 programs, including a wide variety of reverbs, delays, chorus, flanger, phaser, auto-wah, distortion, and more. These can be assigned to channels and controlled directly from the mixer.

• Peak LEDs & Level Meters: For visual monitoring of signal levels, helping to prevent clipping and ensure optimal gain staging.

USB Audio Interface:

• 2-in/2-out USB Audio Functions: This allows for direct connection to a computer (PC/Mac) for 2-channel recording and playback. This is ideal for capturing stereo mixes or for playing backing tracks.

• High Resolution: Supports up to 24-bit / 192 kHz audio quality, making it suitable for quality home studio recording.

• iPad Compatibility: Works with iPad (2 or later) via the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter.

• Bundled Software: Typically includes a download code for Steinberg Cubase AI DAW software for Mac and PC, offering a basic but capable recording environment.

Construction & Design:

• Metal Chassis: Rugged, durable, and impact-resistant all-metal chassis designed to withstand the rigors of frequent use and transport.

• Internal Universal Power Supply: Simplifies setup and reduces cable clutter by eliminating the need for an external power adapter.

• Rack-Mountable: An included rack-mount kit (RK-MG12) allows for convenient installation into a standard equipment rack.

• Color-Coded Controls: For easy visual identification and intuitive operation.

The Yamaha MG16XU is an incredibly popular and versatile mixer because it strikes an excellent balance, offering professional analog sound quality from its D-PRE preamps, flexible routing and sub-mixing capabilities with its group and aux buses, and the added convenience of high-quality, built-in SPX effects and a 2x2 USB audio interface, all in a robust and portable package.
