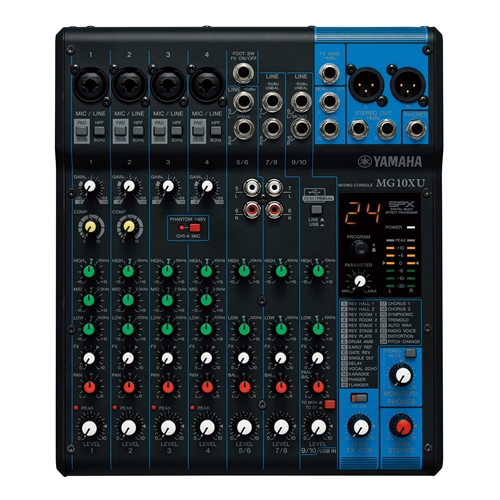

Yamaha MG10XU Mixer - 10 Imput

The Yamaha MG10XU is a highly popular and versatile 10-channel analog mixing console, part of Yamaha's well-regarded MG series. It's known for its robust build, excellent sound quality, and inclusion of useful features like onboard effects and a USB audio interface, making it suitable for a wide range of applications including live sound, home recording, streaming, and practice.

Here's a detailed breakdown of its key features and specifications:

Channels and Inputs:

• Total Channels: 10 input channels.

• Mono Mic/Line Inputs (XLR/TRS Combo Jacks): 4 channels. These are equipped with:

  • "D-PRE" Mic Preamps: Yamaha's studio-grade discrete Class-A microphone preamps, known for their transparent, natural, and low-noise characteristics. They use an inverted Darlington circuit for higher power and lower impedance.

  • +48V Phantom Power: Switchable, for connecting condenser microphones.

  • PAD Switch: 26 dB attenuation, useful for handling high-level input signals (e.g., from loud instruments or mic'd amps) to prevent clipping.

  • High-Pass Filter (HPF): 80 Hz, 12 dB/octave, to eliminate unwanted low-frequency rumble.

  • 1-Knob Compressors: On channels 1 and 2, allowing for easy and effective dynamics control with a single rotary knob. This is a great feature for beginners or quick adjustments in a live setting.

• Stereo Line Inputs (TRS/RCA Jacks): 3 stereo channels (channels 5/6, 7/8, and 9/10). Channels 5/6 and 7/8 often have both TRS and RCA inputs, while 9/10 can also serve as the USB return.

Outputs:

• Stereo Out: 2 x XLR balanced outputs and 2 x TRS balanced outputs for connecting to main PA speakers or recording devices.

• Monitor Out: 2 x TRS outputs for connecting to monitor speakers.

• Phones Out: 1 x 1/4" stereo headphone jack with level control.

• AUX (FX) Send: 1 x TRS output, typically used to send signal to the internal effects processor.

Buses:

• 1 Stereo Bus

• 1 AUX (FX) Bus

Processing & Effects:

• Channel EQ:

  • 3-band EQ (High, Mid, Low) on mono channels (1-4) for precise tone shaping.

  • 2-band EQ (High, Low) on stereo channels (5-10).

• High-Grade SPX Digital Effects: Built-in effects processor with 24 programs, including various reverbs, delays, chorus, flanger, phaser, auto-wah, distortion, and more. Effects can be enabled/disabled via a button or an optional footswitch.

• Peak LEDs & Level Meter: For visual monitoring of signal levels to prevent clipping.

USB Audio Interface:

• 2-in/2-out USB Audio Functions: Allows for direct connection to a computer (PC/Mac) for 2-channel recording and playback.

• High Resolution: Supports up to 24-bit / 192 kHz audio quality, making it suitable for home studio recording.

• iPad Compatibility: Works with iPad (2 or later) via the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter.

• Bundled Software: Typically includes a download code for Steinberg Cubase AI DAW software for Mac and PC, and sometimes Cubasis LE for iPad.

Construction & Design:

• Metal Chassis: Rugged and durable all-metal chassis designed to withstand the rigors of frequent use and transport.

• Compact Size: Relatively small and lightweight, making it highly portable. (Dimensions: 9.6" W x 2.8" H x 11.6" D; Weight: 4.63 lbs).

• Knob-based Design: Utilizes rotary knobs for level control instead of faders, contributing to its compact form factor.

The Yamaha MG10XU is a highly recommended mixer for anyone needing a reliable, great-sounding, and feature-rich compact mixing solution for small bands, solo performers, podcasters, streamers, or home recording enthusiasts. Its combination of quality preamps, useful effects, and USB connectivity offers excellent value.
