Yamaha MG10X Mixer - 10 Channel Stero Mixer - Effects

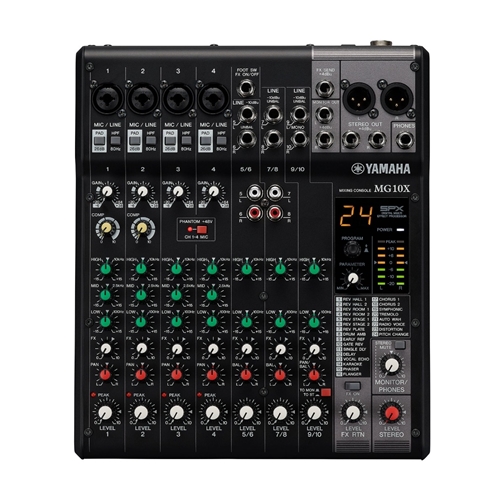

The Yamaha MG10X is a 10-channel analog mixing console that builds upon the solid foundation of the MG10 by integrating a high-quality digital effects processor. This makes it an ideal solution for live performances, home studios, public speaking, and any application where the convenience of onboard effects is desired without sacrificing audio quality.

Key Features (building on MG10 features and adding "X" capabilities):

• Channels: 10-channel mixing console:
  • 4 x Mono Mic/Line inputs (XLR/TRS combo jacks)
  • 3 x Stereo Line inputs (1/4" TRS jacks; two of these also have RCA input options)
• Preamps: Features Yamaha's acclaimed "D-PRE" mic preamps with an an inverted Darlington circuit. These discrete Class-A preamps are designed to deliver transparent, natural sound with very low distortion, providing a pristine signal path.
• Phantom Power: Switchable +48V phantom power on the four mono channels, essential for powering condenser microphones.
• PAD Switch: A 26 dB pad switch on the mono input channels helps handle high-level input sources (e.g., loud vocals, close-miked instruments) to prevent clipping.
• 1-Knob Compressors: (On channels 1 and 2) A Yamaha innovation, these intuitive controls allow you to add optimized compression to vocals or instruments with a single rotary knob, effectively smoothing out dynamics and adding punch to your mix.
• EQ:
  • 3-band EQ (High, Mid, Low) on the four mono input channels for precise tone shaping (High: +/-15 dB at 10 kHz shelving; Mid: +/-15 dB at 2.5 kHz peaking; Low: +/-15 dB at 100 Hz shelving).
  • 2-band EQ (High, Low) on the stereo input channels.
• High-Pass Filter (HPF): 80 Hz, 12 dB/oct HPF on the mono channels to eliminate unwanted low-frequency rumble and noise.
• AUX Send: 1 x AUX send (1/4" TRS) for connecting to external effects units or creating a separate monitor mix. This AUX send also feeds the internal effects processor.
• Integrated Digital Effects (SPX Processor): This is the key "X" feature. The MG10X includes Yamaha's acclaimed SPX digital multi-effect processor with 24 editable programs, offering a comprehensive suite of effects:
  • Reverb (Hall, Room, Plate, etc.)
  • Delay (Short Delay, Long Delay, Vocal Echo, etc.)
  • Chorus, Phaser, Flanger, Tremolo, Auto Wah, Distortion, Pitch effects, and more.
  • A footswitch input (for optional FC5 footswitch) allows for hands-free effect on/off control.
• Outputs:
  • XLR balanced stereo main outputs (L/R) for professional connection to PA systems or powered speakers.
  • 1/4" TRS stereo main outputs (L/R) (often parallel to XLR).
  • 1/4" TRS stereo monitor outputs (L/R) for connecting to stage monitors or a separate listening system.
  • 1/4" stereo headphone output with dedicated level control for personal monitoring.
• Metering: 2 x 7-segment LED level meters for clear visual monitoring of output levels (PEAK, +10, +6, 0, -6, -10, -20 dB).
• Construction: Rugged, impact-resistant, powder-coated metal chassis ensures durability for road use and long-term reliability.
• Compact Dimensions:
  • Width: 244 mm (9.6")
  • Height: 71 mm (2.8")
  • Depth: 294 mm (11.6")
• Net Weight: 2.1 kg (4.63 lbs.)

The Yamaha MG10X is a popular choice for musicians, presenters, and small venue owners who need more inputs than the MG06X, coupled with the ability to add professional-sounding effects directly from the mixer. It provides a clean, versatile, and user-friendly mixing experience for a variety of audio applications. Note that while it has integrated digital effects, the standard MG10X model does not include USB audio connectivity (for that, you would look at the MG10XU model).
