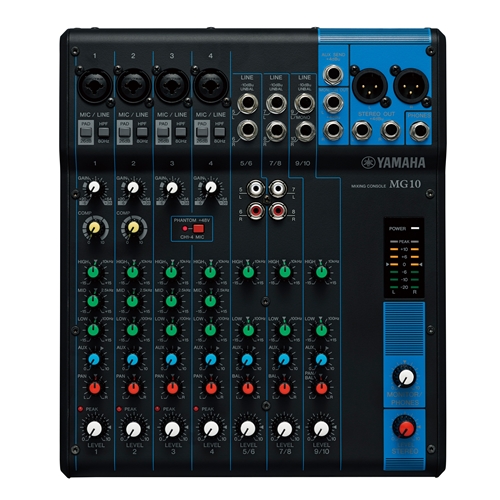

Yamaha MG10 Mixer - 10 Imput

The Yamaha MG10 is a versatile and compact 10-channel analog mixing console, part of Yamaha's MG series known for its transparent sound and durable construction. It's designed for a wide range of applications, from small band gigs and public speaking to home recording and live streaming.

Key Features:

• Channels: 10-channel mixing console, offering a good balance of inputs for various setups:
  • 4 x Mono Mic/Line inputs (XLR/TRS combo jacks)
  • 3 x Stereo Line inputs (TRS jacks; two of these also have RCA input options)
• Preamps: Features Yamaha's acclaimed "D-PRE" mic preamps with an inverted Darlington circuit. These discrete Class-A preamps deliver clean, transparent, and natural sound with very low distortion, providing a high-quality signal foundation.
• Phantom Power: Switchable +48V phantom power on the four mono channels, essential for using condenser microphones.
• PAD Switch: A 26 dB pad switch on the mono input channels helps handle high-level input sources (e.g., loud vocals, close-miked drums, guitar amplifiers) to prevent clipping and distortion.
• 1-Knob Compressors: (On channels 1 and 2) A Yamaha innovation, these simple controls allow you to add optimized compression to vocals or instruments with a single rotary knob, helping to smooth out dynamics and make sounds sit better in the mix.
• EQ:
  • 3-band EQ (High, Mid, Low) on the four mono input channels for comprehensive tone shaping.
    • High: +/-15 dB at 10 kHz (shelving)
    • Mid: +/-15 dB at 2.5 kHz (peaking)
    • Low: +/-15 dB at 100 Hz (shelving)
  • 2-band EQ (High, Low) on the stereo input channels (often on the first two stereo pairs).
• High-Pass Filter (HPF): 80 Hz, 12 dB/oct HPF on the mono channels to eliminate unwanted low-frequency rumble, hum, and stage noise.
• AUX Send: 1 x AUX send (1/4" TRS) for connecting to external effects units or creating a separate monitor mix for musicians.
• Outputs:
  • XLR balanced stereo main outputs (L/R) for connecting to PA systems or powered speakers.
  • 1/4" TRS stereo main outputs (L/R) (often parallel to XLR).
  • 1/4" TRS stereo monitor outputs (L/R) for connecting to stage monitors or a separate listening system.
  • 1/4" stereo headphone output with dedicated level control for personal monitoring.
• Metering: 2 x 7-segment LED level meters (PEAK, +6, +3, 0, -3, -10, -20 dB) for clear visual monitoring of output levels.
• Construction: Robust, impact-resistant, powder-coated metal chassis ensures durability for road use and long-term reliability.
• Compact Dimensions:
  • Width: 244 mm (9.6")
  • Height: 71 mm (2.8")
  • Depth: 294 mm (11.6")
• Net Weight: 1.9 kg (4.19 lbs.)

The Yamaha MG10 is an excellent choice for users who need more inputs and comprehensive EQ controls than the smaller MG06/MG06X, but without the added complexity or cost of built-in effects or USB connectivity. Its focus on clean preamps and essential mixing features makes it a reliable workhorse for various audio applications.
