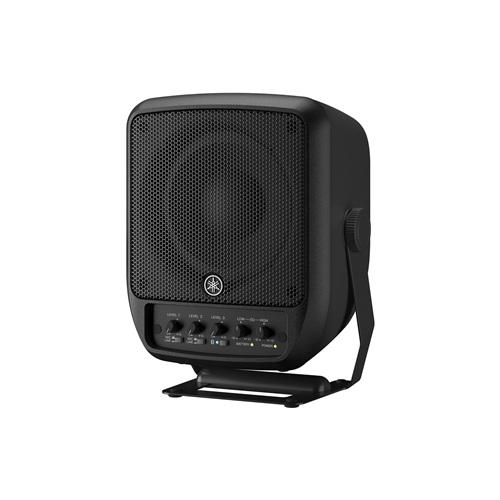

Yamaha Stagepas 100BTR Battery Powered Speaker with Bluetooth

The Yamaha Stagepas 100BTR is a highly compact and portable all-in-one PA system designed for musicians, buskers, and presenters who need a powerful and easy-to-use solution on the go. The "BTR" in the name indicates that it includes a rechargeable battery, which is its key feature for mobile applications.

Here is a detailed breakdown of its key features:

Core Concept & Sound

• All-in-One and Ultra-Portable: The Stagepas 100BTR is a single-unit powered speaker with a built-in mixer. Weighing in at just 12.1 lbs (5.5 kg), it's designed to be carried in one hand, making it incredibly convenient for performers who need to set up and play anywhere, anytime. The rotatable carrying handle doubles as a stand, allowing you to angle the speaker on the ground to direct the sound.

• 100 Watts of Power: The speaker features a bi-amplified Class-D amplifier that delivers 100 watts of dynamic power (93W to the woofer and 7W to the tweeter). This allows it to produce a maximum SPL of 120 dB, providing a surprising amount of volume and clarity for its size.

• Coaxial Speaker Design: The speaker is equipped with a high-quality coaxial transducer design, featuring a 6.5" woofer and a 1.4" compression driver. This setup provides a natural dispersion of sound with a wide 90 x 90 coverage, ensuring that your audience hears a coherent and clear sound.

• FIR-X Filters: Like other high-end Yamaha products, the Stagepas 100BTR uses FIR-X filters for the crossover between the woofer and tweeter. This technology optimizes the phase response, leading to a more natural and accurate sound.

Battery & Power

• Rechargeable Lithium-Ion Battery: The "BTR" model includes a high-capacity 60 Wh rechargeable lithium-ion battery.

• Battery Life: The battery provides a maximum operating time of up to 6 hours on a full charge. At 1/16 power, it can run continuously for about 5 hours, making it perfect for busking, ceremonies, or small events.

• Charging: The battery can be fully recharged in approximately 2.5 hours using the included AC adapter.

Mixer & Connectivity

• 3-Channel Mixer: The integrated mixer offers a basic but useful set of inputs for a variety of sources:

  • Channel 1 & 2: Combo XLR-1/4" inputs for microphones or line-level instruments.

  • Channel 2: Has a switch for a Hi-Z input, allowing you to directly connect a guitar or bass with a passive pickup.

  • Channel 3: A stereo mini-jack input for connecting a music player or other line-level source.

• Bluetooth Connectivity: The speaker has built-in Bluetooth 5.0 for wireless audio streaming from smartphones, tablets, or other devices.

• 2-Band Master EQ: A simple 2-band EQ (Bass and Treble) on the front panel allows for quick and easy adjustments to the overall sound.

• Mix-Out: A dedicated XLR mix output allows you to send a mixed signal from the speaker to another PA system or recording device.

Overall Impression

The Yamaha Stagepas 100BTR is an excellent choice for:

• Solo Performers and Buskers: Its compact size, battery power, and easy-to-use mixer make it an ideal self-contained PA system for street performances and small gigs.

• Public Speakers and Presenters: Its clear sound and portability are perfect for conferences, small events, or ceremonies.

• Home Use: It can also function as a high-quality Bluetooth speaker for listening to music or practicing at home.
