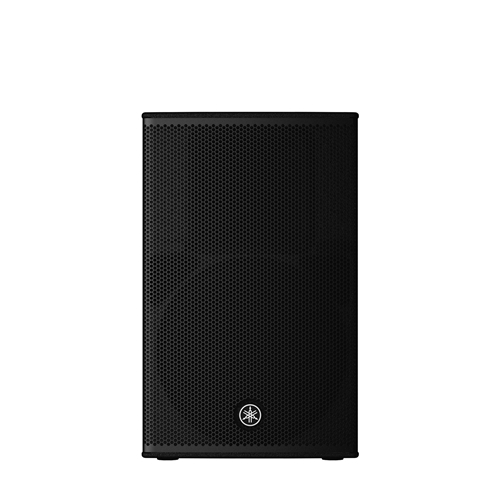

Yamaha DHR12 1000 watt powered speaker

The Yamaha DHR12 is a professional-grade powered loudspeaker, part of the DHR series, which is known for its durable plywood construction, advanced digital signal processing (DSP), and versatile design. It is a popular choice for live sound reinforcement, DJs, and fixed installations.

Here is a detailed breakdown of its key features:

Core Concept & Sound:

• 1000 Watts of Class-D Bi-Amplification: The DHR12 features a bi-amplified design, delivering a total of 1000 watts of peak power (800W to the 12" woofer and 200W to the 1.4" compression driver). This powerful Class-D amplifier allows the speaker to produce a high maximum SPL of 130 dB, providing plenty of volume and clarity for medium-sized venues.

• 12-inch Woofer and 1.4-inch Compression Driver: The speaker is equipped with a high-power 12" woofer, which provides a full and well-defined low-end, and a 1.4" precision compression driver for accurate midrange and high frequencies. This combination gives it a wide frequency range of 48 Hz to 20 kHz.

• High-Quality Plywood Construction: A standout feature of the DHR series is the use of premium plywood for the cabinet. This construction, similar to Yamaha's high-end DZR series, delivers outstanding durability and acoustic performance with minimal vibration. The cabinet is finished with a tough, scratch-resistant polyurea coating.

• FIR-X Tuning and D-Contour DSP: The speaker incorporates advanced DSP for sound optimization:

  • FIR-X Tuning: This proprietary technology uses a linear-phase FIR filter to optimize the crossover and time alignment between the woofer and tweeter, resulting in a smooth frequency response and excellent sound quality.

  • D-Contour: This intelligent multiband compressor has two selectable modes (FOH/MAIN and MONITOR) that allow you to optimize the sound for its specific application, ensuring consistent clarity at any volume level.

• Rotatable HF Horn: The DHR12 has a rotatable horn with a 90 x 60 dispersion. This is a key feature for fixed installations, as it allows the speaker to be used horizontally or vertically while maintaining the correct sound coverage pattern.

Build Quality & Functionality:

• Integrated 2-Channel Mixer: The speaker includes a simple onboard mixer with two input channels. Channel 1 features an XLR-1/4" combo jack with a Mic/Line input switch, while Channel 2 has an XLR-1/4" combo jack and a stereo RCA input. This makes it a great all-in-one solution for solo performers or small acoustic sets.

• Flexible Mounting Options: The DHR12 is designed for versatility. It has a standard 35mm pole socket with dual angles (0 or -7 downward tilt) for stand mounting, and multiple M10 fly points for suspended installation.

• High-Pass Filter: For use with a subwoofer, the DHR12 has a switchable high-pass filter (100 Hz or 120 Hz) to optimize the system's performance.

Overall Impression:

The Yamaha DHR12 is an excellent choice for:

• Musicians and DJs: Its powerful output, durable plywood cabinet, and advanced DSP make it a reliable and great-sounding speaker for live performances in small-to-medium-sized venues.

• Fixed Installations: The rotatable horn and various mounting options make it an ideal choice for permanent installations in bars, restaurants, or houses of worship.

• Anyone needing a compact, high-quality speaker: The DHR12 delivers professional-level sound in a portable and robust package that is easy to transport and set up.
