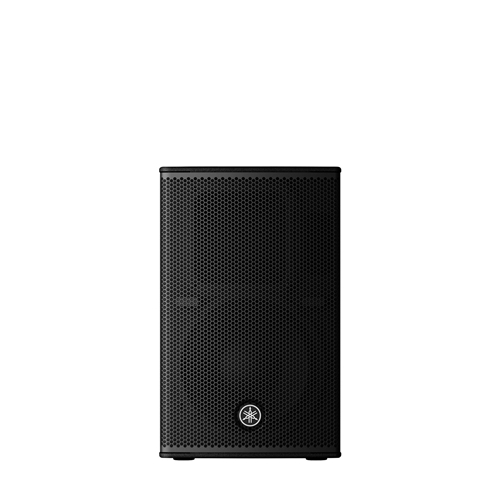

Yamaha DHR10 Powered Speaker 700 watt

The Yamaha DHR10 is a professional-grade powered loudspeaker, part of the DHR series, which is positioned between the entry-level DBR series and the top-tier DZR series. It is designed to offer a premium sound solution in a durable and portable package, making it an excellent choice for fixed installations and mobile PA applications.

Here is a detailed breakdown of its key features:

Core Concept & Sound:

• 700 Watts of Class-D Bi-Amplification: The DHR10 features a bi-amplified design, delivering 700 watts of peak power (500W to the 10" woofer and 200W to the 1.4" compression driver). This powerful Class-D amplifier allows the speaker to produce a maximum SPL of 128 dB, providing plenty of volume and clarity.

• High-Quality Plywood Construction: A key feature that sets the DHR series apart from many speakers in its class is the use of premium plywood for the cabinet. This construction, also found in Yamaha's high-end DZR series, delivers a clear sound with minimal vibration and is finished with a tough, scratch-resistant polyurea coating for durability.

• FIR-X Tuning and D-Contour DSP: The speaker incorporates advanced digital signal processing.

  • FIR-X Tuning: This proprietary technology uses a linear-phase FIR filter to optimize the crossover between the woofer and the tweeter, resulting in a smooth frequency response and excellent sound quality.

  • D-Contour: This intelligent multiband compressor works to maintain sonic integrity at any volume level, with selectable modes for FOH/Main and Monitor use. This allows you to tailor the speaker's performance to its specific application.

• Rotatable HF Horn: The DHR10 has a rotatable horn with a 90 x 60 dispersion. This is a crucial feature for fixed installations, as it allows the speaker to be used horizontally or vertically while maintaining the correct sound coverage pattern.

Build Quality & Functionality:

• Integrated 2-Channel Mixer: The speaker includes a simple onboard mixer with two input channels. Channel 1 features an XLR-1/4" combo jack with a Mic/Line input switch. Channel 2 has an XLR-1/4" combo jack and a stereo RCA input for unbalanced sources like a CD player. Both inputs have independent volume controls, making it a great all-in-one solution for solo performers.

• Flexible Mounting Options: The DHR10 is designed for versatility. It has a standard 35mm pole socket for stand mounting, and multiple M10 fly points for suspended installation. An optional U-bracket is also available for wall or ceiling mounting.

• High-Pass Filter: For use with a subwoofer, the DHR10 has a switchable high-pass filter (100 Hz or 120 Hz) to optimize the system's performance.

Overall Impression:

The Yamaha DHR10 is an excellent choice for:

• Musicians and DJs: Its powerful output, durable plywood cabinet, and advanced DSP make it a reliable and great-sounding speaker for live performances.

• Fixed Installations: The rotatable horn and various mounting options make it an ideal choice for permanent installations in bars, restaurants, or houses of worship.

• Anyone needing a compact, high-quality speaker: The DHR10 delivers professional-level sound in a portable and robust package that is easy to transport and set up.
