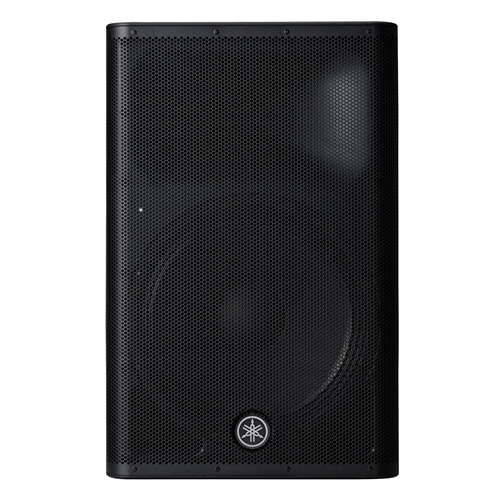

Yamaha DXR15MKII 15in Speaker 1100 Watts

The Yamaha DXR15mkII 15" 2-Way Powered Loudspeaker is the largest model in the DXRmkII series, designed to deliver powerful, full-range audio with exceptional clarity and high output levels. It's a professional-grade speaker that excels in live sound applications where wide bandwidth audio and deep bass are a priority.

Here is a detailed breakdown of its key features:

Core Concept & Sound:

• 1100 Watts of Class-D Power: The DXR15mkII is a bi-amplified speaker, meaning it has separate amplifiers for the low and high frequencies. It delivers a total of 1100 watts of peak power (700 watts continuous), with 950 watts for the 15-inch woofer and 150 watts for the high-frequency driver. This provides a high output level (up to 134 dB SPL) with remarkable clarity and minimal distortion.

• High-Quality Components: It features a high-power 15" woofer for a wide frequency response and powerful, deep bass (down to 49 Hz), and a new, larger 1.75" Neodymium high-frequency compression driver for extremely clear voice reproduction and musicality. The large woofer makes this speaker a great choice for applications that need a strong low-end without the use of a separate subwoofer.

• FIR-X Tuning: This proprietary sound-processing technology uses a linear-phase FIR filter to optimize the crossover and time alignment between the woofer and the tweeter. The result is a smooth frequency response and excellent sound quality.

• D-CONTOUR Intelligent Dynamic Control: This is a built-in multiband compressor that optimizes the sound for different output levels. It has two modes: FOH/MAIN for front-of-house applications and MONITOR for use as a stage monitor. It ensures consistent clarity at any volume.

Build Quality & Functionality:

• Durable ABS Enclosure: The cabinet is made from rugged ABS plastic, which makes it durable and resistant to vibrations from high output levels. The bass-reflex design is engineered for enhanced bass performance with reduced turbulence.

• Integrated 3-Channel Mixer: The speaker has a versatile onboard mixer with three channels of input. It includes XLR, 1/4", and RCA inputs, as well as XLR thru and output connectors, allowing you to connect a variety of professional sound systems and devices. This feature makes it a great standalone PA system for solo performers.

• Versatile Mounting Options: The speaker has a dual 35mm pole socket that allows you to mount it on a stand with a straight or a 7-degree downward tilt. It also has M10 fly points for suspended installation and an optional U-bracket is available for wall mounting. The symmetrical design also makes it a great floor monitor.

• Advanced DSP Protection: The speaker has built-in protection circuitry that monitors the power supply, amps, and drivers to prevent overheating or overloading, ensuring the safety and longevity of the speaker.

Overall Impression:

The Yamaha DXR15mkII is an excellent choice for:

• Gigging Musicians and DJs: Its powerful output, deep bass response, and integrated mixer make it a reliable and versatile speaker for live performances in a variety of venues.

• Mobile DJ and PA Applications: Its full-range performance, portability, and durability make it an ideal choice for mobile setups.

• Anyone needing a high-quality speaker with a strong low-end: The 15" woofer provides a powerful bass response, making it a great option when a subwoofer isn't practical or necessary.
