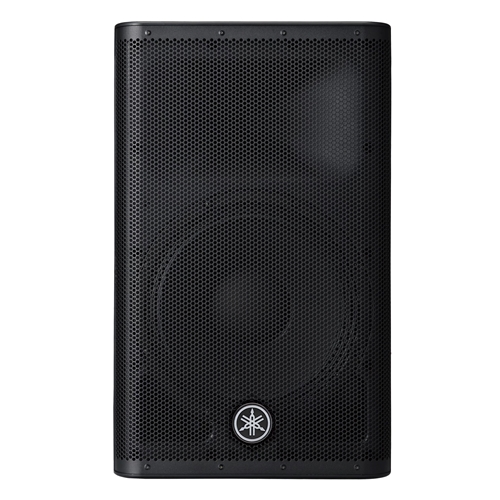

Yamaha DXR12MKII Speaker 1100 WATTS 12"

The Yamaha DXR12mkII 12" 2-Way Powered Loudspeaker is a professional-grade speaker that builds on the reputation of the original DXR series. It's a highly versatile and powerful speaker designed for a wide range of live sound applications, from front-of-house to stage monitoring.

Here is a detailed breakdown of its key features:

Core Concept & Sound:

• 1100 Watts of Class-D Power: The DXR12mkII features a high-efficiency bi-amplified Class-D power amp that delivers a total of 1100 watts of peak power (700 watts continuous). This allows the speaker to produce a maximum SPL (Sound Pressure Level) of 134 dB, making it extremely loud and clear for its size. The power is split between the low-frequency woofer (950W peak) and the high-frequency driver (150W peak).

• High-Quality Components: It is equipped with a 12-inch woofer and a 1.75-inch neodymium compression driver. The larger woofer compared to the DXR10mkII provides a deeper bass response, with a frequency range extending down to 52 Hz (-10 dB), making it a great choice for applications that need a powerful low-end without a subwoofer.

• FIR-X Tuning: This is Yamaha's proprietary sound-processing technology that uses a linear-phase FIR filter. It optimizes the crossover between the woofer and tweeter, resulting in a smooth frequency response and excellent sound quality.

• D-CONTOUR Intelligent Dynamic Control: The D-CONTOUR is a built-in multiband compressor that optimizes the sound for different output levels and applications. It has two modes: FOH/MAIN, which boosts the low frequencies for front-of-house use, and MONITOR, which tames the low frequencies to reduce reflections when used as a stage monitor.

Build Quality & Functionality:

• Durable ABS Enclosure: The cabinet is made from rugged, non-resonant ABS plastic, which makes it durable enough for the road while remaining relatively lightweight at 41 lbs.

• Integrated 3-Channel Mixer: The speaker features a versatile onboard mixer with three input channels (XLR, 1/4", and RCA) and various output connectors. This allows you to connect multiple devices and use the DXR12mkII as a standalone PA system.

• Versatile Mounting Options: The speaker has a dual-angle pole socket that allows you to mount it straight or with a 7-degree downward tilt. It also has M10 fly points for suspended installation and a symmetrical design, making it an excellent floor monitor.

• Advanced DSP Protection: The internal digital signal processing constantly monitors the power supply, amplifiers, and drivers to protect the components from overheating or overloading, ensuring reliable performance and longevity.

Overall Impression:

The Yamaha DXR12mkII is an excellent choice for:

• Gigging Musicians and DJs: Its powerful output, deep bass response, and integrated mixer make it a reliable and versatile speaker for live performances in a variety of venues.

• Mobile PA and Sound Reinforcement: Its portability, durability, and a wide range of connectivity options make it an ideal choice for mobile setups.

• Anyone needing a high-quality, all-in-one speaker: It can be used as a main speaker, a stage monitor, or a standalone PA system, offering great value and flexibility.
