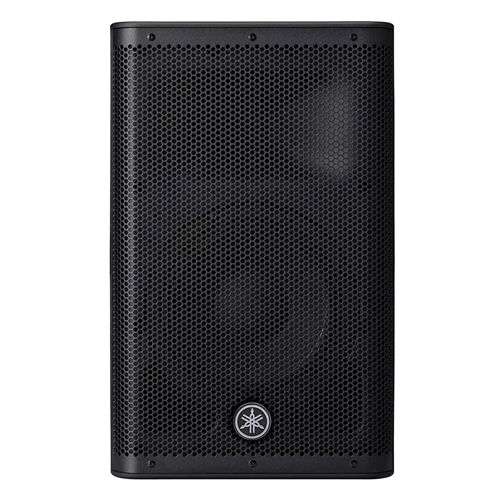

Yamaha DXR10MKII 1100W 10" Powered Speaker

The Yamaha DXR10mkII 10" 2-Way Powered Loudspeaker is a highly regarded and versatile speaker designed for a wide range of live sound applications. It is part of Yamaha's DXR series, which is known for its combination of powerful sound, advanced digital signal processing (DSP), and durable, portable design.

Here is a detailed breakdown of its key features:

Core Concept & Sound:

• 1100 Watts of Class-D Power: The DXR10mkII is a bi-amplified speaker, meaning it has separate amplifiers for the low and high frequencies. It delivers a total of 1100 watts of peak power (700 watts continuous), with 950 watts for the 10-inch woofer and 150 watts for the high-frequency driver. This provides a high output level (up to 132 dB SPL) with remarkable clarity and minimal distortion.

• High-Quality Components: It features a high-power 10" woofer with a 2" voice coil for a wide frequency response and powerful bass, and a new, larger, yet lighter 1.75" Neodymium high-frequency compression driver for extremely clear voice reproduction and musicality.

• FIR-X Tuning: This proprietary sound-processing technology uses a linear-phase FIR filter to optimize the crossover and time alignment between the woofer and the tweeter. The result is a smooth frequency response and excellent sound quality.

• D-CONTOUR Intelligent Dynamic Control: This is a built-in multiband compressor that optimizes the sound for different output levels. It has two modes: FOH/MAIN for front-of-house applications and MONITOR for use as a stage monitor. It ensures consistent clarity at any volume.

Build Quality & Functionality:

• Durable ABS Enclosure: The cabinet is made from rugged ABS plastic, making it both lightweight (around 30.6 lbs) and highly durable. The bass-reflex design with reduced turbulence enhances the bass performance.

• Integrated 3-Channel Mixer: The speaker has a versatile onboard mixer with three channels of input. It includes XLR, 1/4", and RCA inputs, as well as XLR thru and output connectors, allowing you to connect a variety of professional sound systems and devices. This feature makes it a great standalone PA system for solo performers.

• Versatile Mounting Options: The speaker has a dual 35mm pole socket that allows you to mount it on a stand with a straight or a 7-degree downward tilt. It also has M8 fly points for suspended installation and an optional U-bracket is available for wall mounting. The symmetrical design also makes it a great floor monitor.

• DSP-Controlled Advanced Protection: The speaker has built-in protection circuitry that monitors the power supply, amps, and drivers to prevent overheating or overloading, ensuring the safety and longevity of the speaker.

Overall Impression:

The Yamaha DXR10mkII is an excellent choice for:

• Gigging Musicians and DJs: Its powerful output, clear sound, and integrated mixer make it a reliable and versatile speaker for live performances in small to medium-sized venues.

• Mobile DJ and PA Applications: Its portability, durability, and a variety of connectivity options make it an ideal choice for mobile setups.

• Anyone needing a high-quality stage monitor: The D-CONTOUR monitor mode and symmetrical design make it a top-tier choice for a stage monitor.
