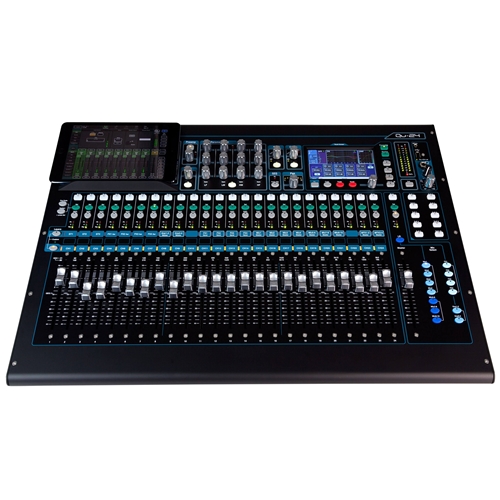

Allen & Heath QU24 Digital Mixer 24 Channel Non-Powered Mixer ALLEN&HEATH

The Allen & Heath Qu-24 Chrome Edition is a powerful and highly intuitive 24-channel digital mixer, building upon the success of the Qu-16 with significantly increased I/O and enhanced control. It's a popular choice for live sound, studio recording, and installations, known for its user-friendly interface, robust feature set, and high-quality audio. The "Chrome Edition" distinguishes it with upgraded tactile controls and additional software features.

Key Features:

• Expanded Channel Count:
  • 24 Mono Mic/Line Inputs (TRS + XLR) with recallable AnaLOGIQ preamps.
  • 3 Stereo Inputs (TRS).
  • 4 Stereo FX Returns.
• More Mix Outputs:
  • 20 Mix Outputs (XLR) including Main LR, 4 Mono Mixes, 3 Stereo Mixes, 2 Stereo Groups, and 2 Stereo Matrix Outs. This provides greater flexibility for monitor mixes, subgroups, and sends.
• More Motorized Faders: Features 25 motorized 100mm ALPS faders (one for each of the 24 input channels over two layers, plus a dedicated master fader). This offers direct, one-fader-per-channel control for the 24 mono inputs, simplifying workflow, especially for those transitioning from analog.
• AnaLOGIQ Preamps: High-performance, digitally controlled preamps with total recall, delivering transparent, low-noise, and musical sound.
• Intuitive Touchscreen Interface: A 5-inch (800x480 resolution) color touchscreen provides quick and easy access to all settings, metering, RTA views, FX racks, processing, routing, and scene management.
• Comprehensive Onboard DSP & Effects:
  • Equipped with 4 stereo RackFX engines with a diverse library of studio-grade effects derived from Allen & Heath's iLive consoles.
  • Full processing (Trim, polarity, HPF, gate, insert, 4-band parametric EQ, compressor, and delay) on all inputs and outputs.
  • 1/3 octave Graphic EQs (GEQ) available on mix outputs.
• Qu-Drive Direct Multitrack Recording/Playback: Allows direct multitrack recording (18-channel WAV, 48kHz/24-bit) and stereo recording/playback to/from a USB hard drive without needing a computer.
• USB Audio Interface: Functions as a 32x30 USB Audio Interface for multi-channel recording and playback with a computer (Mac/PC), compatible with various DAWs.
• Wireless Control & Ecosystem: Supports wireless mixing via the Qu-Pad iPad App, personal monitoring via the Qu-You iPhone/Android app, and installer control via the Qu-Control app. It's also fully compatible with the ME Personal Mixing System.
• Automatic Mic Mixing (AMM): Automatically balances levels for up to 16 microphone inputs, ideal for conferences, panel talks, and theatrical applications.
• ProFactory Mic Presets: Optimized presets for various microphones to speed up setup time.
• Spectrogram: A visual tool to assist in identifying and eliminating feedback and problem frequencies.
• dSNAKE Remote Audio Port: Allows connection to Allen & Heath's remote AudioRacks (like AR2412, AR84, AB168) for distributed I/O, simplifying cable runs for larger setups.
• Chrome Edition Specifics: Features high-contrast metallic finish rotary controls and fader caps for improved visibility in low-light conditions and enhanced tactile control, matching the premium GLD Chrome series.
• Rack Mountable: Can be desk-mounted or installed into a standard 19-inch equipment rack.

The Allen & Heath Qu-24 Chrome Edition is a highly capable and user-friendly digital mixer, popular among bands, venues, and rental companies for its excellent sound, comprehensive feature set, and intuitive workflow, offering significant headroom for larger productions compared to its smaller counterparts.
