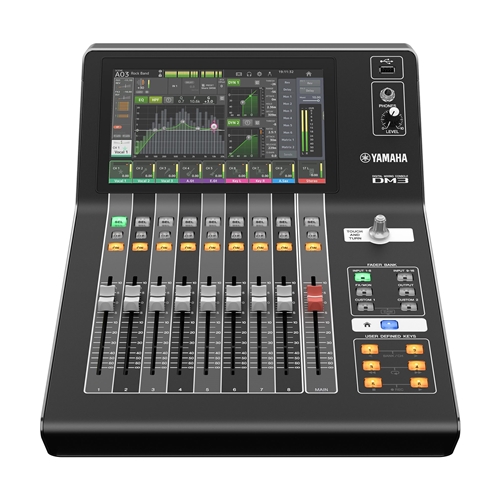

Yamaha DM3 22 Channel Digital Mixer

The Yamaha DM3 series represents a new generation of ultracompact digital mixing consoles, designed to be highly versatile for various applications including live sound, livestreaming, content creation, studio recording, and installations. Despite their small footprint, these mixers offer professional-level features and high-quality sound.

There are two main models in the DM3 series:

• DM3 Standard (DM3S): The core model without Dante.
• DM3-D: Features integrated Dante connectivity for networked audio.

Here are the key features generally common to the Yamaha DM3 series:

• Compact and Portable Design: Extremely small and lightweight, making them easy to transport and ideal for setups where space is limited.
• High-Quality Sound: Capable of 96 kHz sample rates, providing pristine audio quality with low latency. Yamaha's legacy of sonic purity is maintained, aiming for transparent, uncolored sound.
• Intuitive User Interface: Features a 9-inch multi-touch screen that handles most operations, often complemented by a single "Touch & Turn" knob for fine control, making operation familiar and accessible.
• Mixing Capacity:
  • Input Channels: 16 mono + 1 stereo + 2 FX return channels.
  • Buses: 1 Stereo bus, 6 Mix buses, 2 FX buses, and 2 Matrix buses (supports input to matrix).
• Inputs and Outputs:
  • Analog Inputs: 16 Mic/Line inputs (12 XLR + 4 XLR/TRS combo jacks) with high-quality preamps.
  • Analog Outputs: 8 XLR outputs.
  • USB Audio Interface: 18-in/18-out USB audio interface for multitrack recording to a computer (PC/Mac) and playback.
  • USB to Device: A USB Type-A port for 2-track recording/playback to a USB storage device.
  • Dante Connectivity (DM3-D model only): The DM3-D features 16-in/16-out Dante networking, allowing for seamless integration with other Dante-enabled devices for expanded I/O and simplified system setup.
• Onboard Effects: Equipped with two high-quality multi-effects processors offering 18 types of effects, including new REV HD and REV R3 reverbs. Graphic EQs (GEQ) are available on Mix 1-6 and Stereo channels.
• DAW Remote Control: Can function as a DAW controller, allowing physical faders and buttons to control DAW operations (e.g., volume, play/stop). It supports various DAW software and comes bundled with Cubase AI.
• QuickPro Presets: Provides a selection of optimized presets for various microphones and output equipment, developed in collaboration with leading manufacturers, to speed up setup and achieve professional sound.
• Flexible Patching: Allows for easy changes to input and output patching to adapt to different system requirements.
• Dedicated Software/Apps: Supported by "DM3 Editor" software for offline editing and "DM3 StageMix" (iPad app) and "MonitorMix" (iPad/iPhone/Android app) for wireless remote control, including individual monitor mixes for performers.
• GainFinder Feature: Provides visual support for gain settings.
• 1-Knob Compressor and EQ: Simplified controls for common processing tasks.
• Robust Construction: Despite being lightweight (approx. 14.3 lbs or 6.5 kg), it features a sturdy housing built to withstand touring rigors.
• Rack Mountable: An optional rack mount kit (RK-DM3) is available.
