Strymon Brig Bucket Delay

Manufacturer Part #:  BRIG
Features

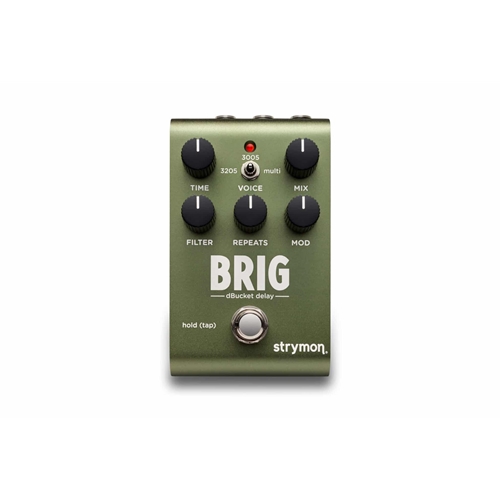

The Strymon Brig is a compact, multi-voice digital pedal that meticulously emulates the warm, dark, and modulated sounds of classic Bucket Brigade Device (BBD) analog delays.

It condenses the complexity of its larger predecessor (the Brigadier) into a pedalboard-friendly mini enclosure, while adding modern features like full stereo I/O and MIDI control.

Key Features and Delay Voices

The Brig features Strymon's proprietary dBucket algorithm, offering three distinct analog delay voices selectable via a toggle switch:

  1. 3205 Voice:

    • Emulation: Recreates the sound of a lower-voltage, single MN3205 BBD chip.

    • Character: Offers the shortest delay times (down to 30ms for slapback and chorus effects), with gritty repeats, increased noise, and a low-fidelity character typical of some vintage Boss delays.

  2. 3005 Voice:

    • Emulation: Recreates a higher-voltage, dual MN3005 BBD chip circuit (similar to the famous Deluxe Memory Man).

    • Character: Provides longer delay times (up to 1 second), higher headroom, and cleaner, warmer repeats with a soft, dreamy quality.

  3. Multi Voice:

    • Emulation: A unique Strymon design featuring two cross-coupled, super-clean dBucket delay lines.

    • Character: The delay lines are set with a golden ratio timing (like the Strymon Dig's "golden ratio" mode), creating complex, cascading, ping-pong-like echoes and massive stereo soundscapes.

Controls and Functionality

ControlFunctionKey Feature/Notes
TIMESets the delay time.Continuously variable for classic pitch-warping effects, but also works seamlessly with Tap Tempo.
REPEATSControls feedback.From a single repeat to controllable infinite sustain (at the 3 o'clock setting) and runaway oscillation.
MIXControls the wet/dry blend.Analog dry path for zero-latency dry signal.
FILTERAdjusts the EQ, noise, and bucket loss of the repeats.Customized for each voice; can be set for dark, murky repeats or brighter, cleaner ones.
MODAdds LFO modulation to the delay time.The modulation is individually voiced for each delay mode, ranging from subtle chorus/vibrato to lush effects.
Bypass FootswitchOn/Off.Selectable between True Bypass (default) or Analog Buffered Bypass with Trails.
Hold FootswitchTap Tempo function.Holding the footswitch activates Tap Tempo mode for artifact-free tempo tapping (up to 2 seconds of delay time).

Connectivity and Advanced Features

  • Stereo I/O: Features a single TRS input and a single TRS output jack for compact, full stereo operation (selectable mono-to-mono, mono-to-stereo, or stereo-to-stereo via a rear switch).

  • EXP/MIDI Jack: A multifunction jack that supports an expression pedal, Favorite preset switch, external Tap Tempo, or full MIDI control via TRS cable.

  • USB-C: Allows for firmware updates and MIDI control from a computer.

  • JFET Input: Uses a high-impedance, ultra-low noise discrete Class A JFET preamp for exceptional touch sensitivity and dynamics.

  • Presets: Offers 300 MIDI preset locations for saving and recalling sounds.


Model:BRIG
Manufacturer:Strymon

BRIG

Manufacturer Part #:  BRIG
