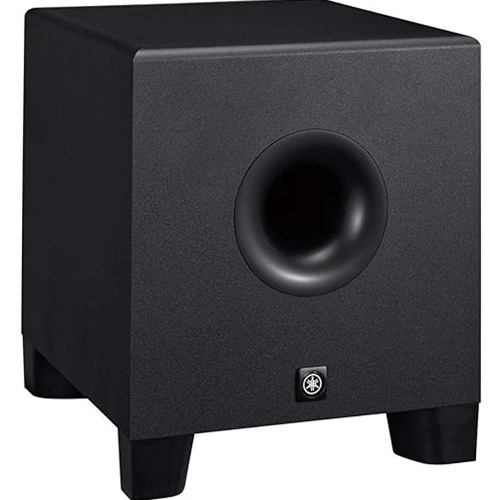

Yamaha HS8S 8 inch Powered Studio Subwoofer

The Yamaha HS8S is an 8-inch powered studio subwoofer designed to complement Yamaha's HS series studio monitors (HS5, HS7, HS8), providing extended low-frequency reproduction crucial for accurate mixing and mastering. It allows you to hear the lowest octaves of your audio, which full-range monitors alone might not fully reproduce, leading to more informed mixing decisions.

Key Features:

• Speaker Configuration: Bass-reflex powered subwoofer.
  • LF Driver: 8" cone woofer, specifically designed for low-frequency reproduction.
• Power Output: 150 Watts (Dynamic), exclusively designed for low frequencies.
• Frequency Response: 22 Hz - 150 Hz (-10 dB). This extended low-end allows you to accurately monitor sub-bass frequencies.
• Controls and Connectivity:
  • LEVEL control: Adjusts the output volume of the subwoofer.
  • HIGH CUT control: (80-120Hz, with a center click) Sets the upper frequency limit of the subwoofer's output, allowing you to seamlessly integrate it with your main monitors.
  • LOW CUT control: (80-120Hz, with a center click) Sets the lower frequency limit of the signals passed through to the main monitors.
  • LOW CUT switch: (ON/OFF) enables or disables the low-cut filter.
  • PHASE switch: (NORMAL/REVERSE) Helps to correct phase issues between the subwoofer and main monitors, ensuring optimal low-end coherence.
  • Inputs: 2 x Balanced XLR (L/R) and 2 x Balanced 1/4" TRS phone inputs, providing flexible connection to your audio interface or mixer.
  • Outputs: 2 x Balanced XLR outputs (L/R) for connecting to your main studio monitors, and 1 x XLR EXT SUB output for connecting an additional subwoofer.
• Proprietary Technology:
  • "Twisted Flare Port": Similar to the HS series monitors, this technology is employed to reduce air turbulence noise in the bass reflex port, resulting in clearer and tighter bass response.
  • Low Resonance Enclosure Design: The cabinet is constructed from dense MDF using a traditional three-way mitered-joint technique, which minimizes unwanted resonance and contributes to accurate sound reproduction.
• Construction: Robust MDF cabinet and a high-power amplifier unit specifically engineered for low-frequency performance.
• Dimensions:
  • Width: 300 mm (11.8")
  • Height: 350 mm (13.8")
  • Depth: 389 mm (15.3")
• Weight: 12.5 kg (27.6 lbs.)
• Available Colors: Black and White.

The Yamaha HS8S is an essential addition to any studio setup looking to achieve a full-range, accurate monitoring environment. By extending the low-frequency response down to 22Hz and providing flexible crossover controls, it takes the burden of reproducing deep bass off your main monitors, allowing them to perform more efficiently in their intended frequency range. This results in a more detailed, impactful, and truthful representation of your audio, particularly in genres with significant low-end content.
