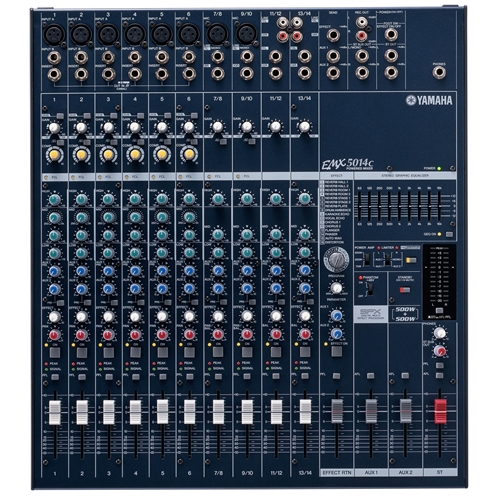

Yamaha EMX5014C Powered Mixer - 14 Imput - SPX Effects - 2X500 WATTS

The Yamaha EMX5014C is a highly popular and well-regarded 14-input console-style powered mixer that was designed to be a comprehensive and portable solution for live sound reinforcement. It combines a versatile mixer, powerful amplifiers, graphic equalizers, and digital effects into a single, compact unit. While it's been discontinued, it remains a common and sought-after piece of gear on the used market due to its reliability and feature set.

Here's a detailed look at its key features and specifications:

Power and Amplifier:

• Dual 500W @ 4 Ohms (1000W total) Power Amplifiers: The EMX5014C features two efficient Class-D amplifiers, each capable of delivering 500 watts into a 4-ohm load. This provides ample power for a wide range of passive PA speakers (such as Yamaha's own Club Series or BR Series, which it's optimized for).

  • It also delivers approximately 350W + 350W into 8 ohms.

• Power Amp Mode Selector: A very flexible feature that allows you to configure the internal amplifiers in different ways:

  • Main + Main (Stereo): Powers your main left and right speakers.

  • Mono + Aux 1: Powers your main mono speaker and a separate monitor mix.

  • Aux 1 + Aux 2: Powers two separate monitor mixes (or two zones), requiring external main power if used in this way.

• Power Output Selector: Allows you to select the output power per channel (500W, 200W, or 75W). This is useful for matching the amplifier output to smaller speakers or venues, and can also help with power consumption.

• High-Efficiency Design: The use of a switching power supply and efficient amplifier circuits keeps the unit relatively lightweight (around 10.5 kg / 23.2 lbs) and generates less heat, enhancing reliability.

• Forced-Air Cooling: Ensures stable operation even under demanding conditions or when rack-mounted.

Mixing Channels & Inputs:

• 14 Input Channels: A versatile configuration for various setups.

  • 6 Mono Mic/Line Channels (Channels 1-6): Feature both XLR and 1/4" TRS phone jacks. These channels also include insert points for connecting external compressors, gates, or other effects processors directly to individual channels.

  • 2 Hybrid Mono Mic/Stereo Line Channels (Channels 7/8 & 9/10): Can function as either two mono microphone/line inputs or a single stereo line input (via dual 1/4" TRS phone jacks).

  • 2 Stereo Line Channels (Channels 11/12 & 13/14): Primarily for stereo line-level devices, offering both 1/4" phone jacks and RCA pin jacks (for CD players, media players, etc.).

• High-Quality Microphone Preamps: Designed for clear, low-noise signal amplification.

• 48V Phantom Power: Available on all XLR microphone inputs for condenser microphones (switchable in groups).

EQ and Dynamics:

• 3-Band EQ per Channel:

  • Channels 1-6: Feature a 3-band EQ with sweepable mid-range (250Hz - 5kHz peaking), offering precise control over vocal and instrument tones.

  • Channels 7-14 (Stereo): Feature a standard 3-band EQ (Low, Mid, High) without sweepable mid.

• Single-Knob Compressors (Channels 1-6): A very popular and easy-to-use feature. These analog compressors allow you to quickly control the dynamics of vocals or instruments (e.g., tighten up a bass guitar, smooth out a vocal performance) with a single rotary knob.

• Dual 9-Band Graphic Equalizers:

  • One for the Stereo Main Output.

  • One for the Aux 1 Output (often used for monitor mixes).These allow for precise tailoring of the overall sound to the room acoustics and speaker characteristics.

• YSProcessing (Yamaha Speaker Processing): A switchable feature designed to optimize the sound for use with Yamaha's Club Series or BR Series loudspeakers, enhancing clarity and impact.

Effects and DSP:

• Built-in SPX Digital Multi-Effector: Features a high-quality 24-bit AD/DA, 32-bit internal processing digital effects processor with 16 versatile programs from Yamaha's renowned SPX series. These include various reverbs (Hall, Room, Plate, Stage), delays (Echo, Vocal Echo), modulation effects (Chorus, Flanger, Phaser), distortion, and more.

• Effects Send/Return: Dedicated Effect Send and stereo Effect Return controls.

• Footswitch Control: An optional FC5 footswitch can be connected for remote on/off control of the effects.

• Feedback Channel Locating (FCL) System: A highly useful feature. LEDs on each input channel illuminate when feedback is detected, helping you quickly identify and address the problematic channel or frequency.

Outputs and Monitoring:

• Main Speaker Outputs: SpeakON and 1/4" phone jacks for connecting passive loudspeakers.

• Stereo Out (Line Level): Balanced 1/4" TRS outputs for connecting to external power amplifiers, powered speakers, or recording devices.

• Stereo Sub Out (Line Level): Separate 1/4" TRS outputs, which can be useful for sending a signal to a powered subwoofer or another zone.

• AUX Sends: Two Aux sends (Aux 1, Aux 2), providing flexibility for monitor mixes or external effects processors.

• Effect Send: Dedicated send for the internal SPX effects.

• REC OUT (RCA): For connecting to a recording device.

• Headphones Output: For silent monitoring.

• PFL (Pre-Fader Listen) and AFL (After-Fader Listen) switches: On channels and master faders for isolated monitoring.

Design and Portability:

• Console-Style Layout: Familiar and intuitive mixing console layout.

• Rack-Mountable: Can be mounted in a standard 19-inch equipment rack using the optional RK5014 rack mount kit.

• Durable Construction: Built with a rugged chassis for roadworthiness.

• Weight: Approximately 10.5 kg (23.2 lbs), making it relatively lightweight for its capabilities.

The Yamaha EMX5014C was a workhorse powered mixer, renowned for its excellent sound quality, robust build, comprehensive features (especially the channel compressors and FCL), and versatile amplifier configuration. It was a go-to choice for bands, rental companies, and venues seeking a reliable, all-in-one PA solution without needing separate mixer, amp, and effects units.
