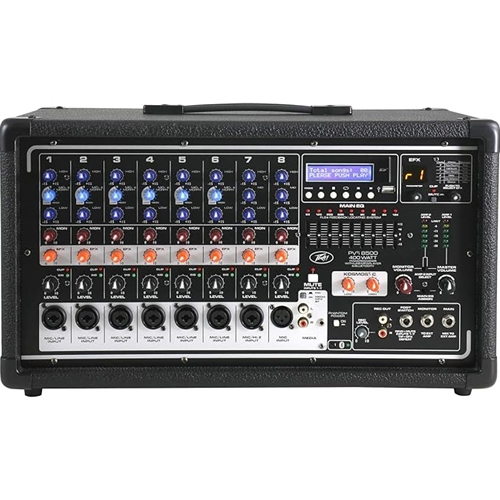

Peavey PVI8500 400W 8-channel Powered Mixer with 8 Inputs

The Peavey PVi 8500 is an all-in-one powered mixer, designed by the well-known American audio company Peavey Electronics, which is based right here in Mississippi! It's built to be a portable and convenient solution for musicians, bands, public speakers, and mobile DJs who need a compact system to mix multiple inputs and power passive loudspeakers.

The "PVi" series from Peavey is specifically geared towards providing essential features and reliable performance in a straightforward, user-friendly package.

Here's a detailed look at the key features and specifications of the Peavey PVi 8500:

Core Functionality:

• All-in-One Powered Mixer: This unit combines a multi-channel mixer, a power amplifier, and a digital effects processor into a single, compact chassis. This significantly simplifies setup and transport compared to separate components.

• Power Output: It delivers 400 watts of peak power (200 watts per channel at 4 ohms RMS). This is sufficient to drive a pair of passive PA speakers (like Peavey's own PV series, or other 8-ohm or 4-ohm passive speakers) for small to medium-sized venues, rehearsals, and general public address.

• Channels: Features 8 input channels, providing ample connectivity for multiple microphones, instruments, and line-level sources.

Inputs and Connectivity:

• Combination XLR/1/4" Inputs: Each of the 8 channels features a versatile combo jack that accepts both XLR (for microphones with phantom power) and 1/4" TRS/TS (for instruments or line-level devices).

• Peavey Silencer Mic Preamps: Utilizes Peavey's low-noise mic preamps designed for clear audio reproduction.

• 48V Phantom Power: Available on the XLR inputs to power condenser microphones.

• Media Input: Includes dedicated RCA and 1/8" (3.5mm) mini-jack inputs for connecting external media players like phones, tablets, or laptops.

• Bluetooth Streaming Audio: A very convenient modern feature, allowing for wireless audio playback from compatible Bluetooth devices for backing tracks, intermission music, or general background audio.

• USB & SD Card Playback: Equipped with built-in slots for USB drives and SD cards, allowing direct playback of MP3 and other audio files without the need for an external player.

• Footswitch Input: For remote control of features like effects bypass or master mute.

• Main Line Level 1/4" Output: For sending the main mix to another powered speaker, a recording device, or an external power amplifier.

• RCA Record Outputs: For easy connection to a recording device.

Key Features & DSP Enhancements:

• Digital Effects (24-bit): Features onboard digital effects, including various reverbs, delays, vocal enhancement, and chorus. Each channel has an individual effects send control, and the effects can be footswitch-defeated.

• 9-Band Graphic EQ with FLS Feedback Locating System: This is a hallmark Peavey feature.

  • Graphic EQ: A 9-band graphic equalizer on the main output allows for precise tonal shaping of the overall mix.

  • FLS (Feedback Locating System): When feedback occurs, an LED above the relevant EQ band lights up, visually indicating which frequency needs to be cut to eliminate the feedback. This makes feedback suppression quick and intuitive.

• Mid Morph EQ: A unique Peavey feature on individual channels that helps to improve vocal tone and clarity by boosting high-mids and scooping lows when engaged. This allows for quick optimization of vocal presence in the mix.

• Kosmos-C Technology: Another Peavey innovation designed to enhance the low and high ends of the audio spectrum, adding depth and clarity to the overall sound.

• DDT Speaker Protection Circuitry: Peavey's patented DDT (Distortion Detection Technique) compression/limiter circuit protects connected speakers from harmful clipping and over-excursion, ensuring reliable operation even when the amplifier is pushed hard.

• Selectable Main or Monitor Power Section: The dual power amplifiers can be assigned to power the main speakers, or one can power the main speakers while the other powers a set of stage monitors. This adds versatility for different live sound setups.

• Master Mute: A master mute function for channels 1-7 for quick silencing of all main inputs.

• LED Meter Bridge: Visual indication of signal levels for each channel and the main output.

Design & Portability:

• Rugged Construction: Built with Peavey's reputation for durability, designed to withstand the rigors of frequent transport and live use.

• Lightweight: Weighing around 23 lbs (10.44 kg), it's relatively light for a powered mixer of its capabilities, enhancing its portability.

• Integrated Handle: Makes for easy carrying.

Applications:

• Small to Medium Bands: Ideal for vocalists and instruments.

• Solo Performers/Duos: Offers all necessary inputs and power for a compact setup.

• Mobile DJs: For mixing music and microphones, especially with the Bluetooth and media playback options.

• Public Speaking Events: Provides clear amplification for speakers.

• Churches/Houses of Worship: For smaller services or auxiliary rooms.

• School Events & Presentations: Simple to operate and transport.

The Peavey PVi 8500 is a highly practical and feature-rich powered mixer that offers a compelling combination of input flexibility, useful DSP tools (like FLS and Kosmos-C), robust power, and a user-friendly interface, making it a reliable choice for a wide array of portable sound reinforcement needs.
