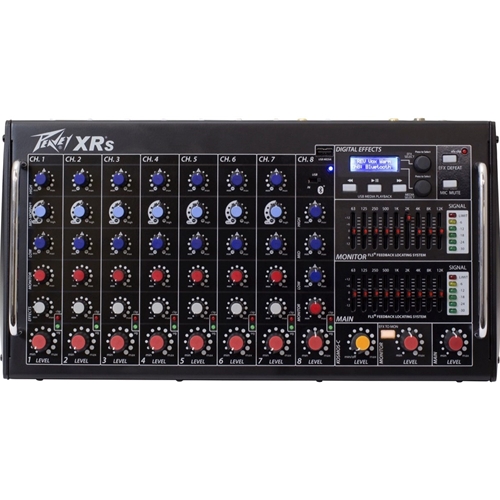

Peavey XR-S 8 - ch Powered Mixer with FX and Bluetooth 1000 Watts RMS 1500 Watts peak

Here's a comprehensive breakdown of the Peavey XR-S:

Core Identity:

• Type: 8-channel Powered Mixer (combines mixer, amplifier, and effects into one unit).

• Power Output:

  • 1000 Watts RMS (500 watts per channel at 4 ohms). This is a significant amount of continuous power, suitable for driving two 4-ohm passive loudspeakers or four 8-ohm passive loudspeakers (two per side).

  • 1500 Watts Peak. This refers to the momentary maximum power the amplifier can deliver.

• Channels: 8 input channels.

Key Features and Technology:

1. Inputs & Connectivity:

   • 8 Combination XLR/1/4" Inputs: Each channel features a versatile combo jack that accepts both XLR (for microphones with phantom power) and 1/4" TRS/TS (for instruments or line-level devices).

   • Peavey Silencer Mic Preamps: Designed for low noise and clear audio reproduction.

   • 48V Phantom Power: Global phantom power available on the XLR inputs for condenser microphones.

   • Input Pads: Channels 1-6 include a switchable -25 dB pad to reduce the input signal and prevent clipping from high-output sources.

   • Media Inputs (Channels 7 & 8):

     • Channel 7: Stereo RCA and 3.5mm (1/8") TRS media inputs for connecting external players like CD players or smartphones.

     • Channel 8: Dedicated USB Type-A input for direct MP3 playback from a USB flash drive, and Bluetooth wireless connectivity for audio streaming from smart devices.

   • Footswitch Input: Allows for remote control of effects bypass and master mic mute.

2. EQ & Tone Shaping:

   • 3-Band EQ per Channel: Each of the 8 input channels has a Low (80Hz), Mid, and High (12kHz) EQ for basic tone control.

   • Mid Morph EQ (Channels 1-7): A unique Peavey feature that functions as a variable mid-range EQ. Turning it counter-clockwise cuts frequencies at 250 Hz (reducing muddiness), while turning it clockwise boosts at 4 kHz (adding vocal intelligibility/presence).

   • Dual 9-Band Graphic EQ: Separate 9-band graphic equalizers on both the Main and Monitor outputs for precise overall system tone shaping and room tuning.

3. Feedback Control:

   • FLS (Feedback Locating System): A patented Peavey technology. When feedback occurs, an LED above the relevant EQ fader on the graphic EQ lights up, visually indicating which frequency needs to be cut to eliminate the feedback. This makes feedback suppression very fast and intuitive.

4. Audio Enhancement:

   • KOSMOS-C Technology: Peavey's exclusive bass enhancement technology. It dramatically enhances the low end of the audio spectrum by adding harmonically related bass signals and increases high-end clarity, contributing to a fuller, more impactful sound. There's an adjustable rotary control for its level.

5. Digital Effects:

   • Onboard 24-bit Digital Effects: Features a selection of high-quality digital effects including various reverbs, delays, chorus, and "enhance" effects.

   • Individual Effects Send: Each channel has an independent effects send control.

   • Footswitchable Effects Defeat: Allows a performer to remotely turn effects on/off.

   • Effect to Monitor Return: Allows effects to be sent to the monitor mix as well.

6. Amplifier & Protection:

   • Selectable Main/Main or Main/Monitor Power Amp Modes: The two 500-watt amplifiers can be configured to power either two main speakers (Main/Main) or one main speaker and one monitor speaker (Main/Monitor), offering setup flexibility.

   • DDT Speaker Protection Circuitry: Peavey's proprietary DDT (Distortion Detection Technique) compression/limiter circuit actively protects connected speakers from harmful clipping and over-excursion, ensuring reliable operation and speaker longevity.

   • Four Twist-Lock Combination Outputs: Features speakON/1/4" combo jacks for speaker connections.

   • Power Amp Sub-Sonic Filter: Helps prevent unwanted ultra-low frequencies from reaching speakers, improving clarity and efficiency.

7. Outputs:

   • Main Speaker Outputs: Via twist-lock (Speakon compatible) and 1/4" TS jacks.

   • Preamp-Level Outputs: 1/4" TRS (Main/Monitor line) and RCA (Record outputs).

   • Subwoofer Line Output: Dedicated 1/4" TRS output for connecting to a powered subwoofer (low-pass at 150 Hz).

   • Monitor Send: A dedicated send for creating a monitor mix.

8. Physical Design & Portability:

   • Rugged Construction: Built with Peavey's reputation for durability, designed to withstand the rigors of frequent transport and live use.

   • Compact & Lightweight: The XR-S weighs approximately 13 lbs (5.9 kg), making it highly portable for its power and feature set.

   • Integrated Handle: For easy carrying.

   • Optional Rack-Mount Kit: Available separately for installation into a standard 19-inch equipment rack.

   • LCD Display: Conveniently displays MP3 file names and play information, along with selected effects.

Ideal Applications:

• Live Bands: Particularly small to medium-sized bands needing to mic vocals, drums, and instruments.

• Mobile DJs: For mixing music, microphones, and providing significant power to speakers.

• Public Speaking & Presentations: Excellent for clear voice amplification in various settings.

• Karaoke Nights: The mic inputs, effects, and music playback features make it ideal.

• Houses of Worship & Community Centers: For services, events, and gatherings.

• Rehearsal Spaces: A versatile hub for practice and monitoring.

The Peavey XR-S is a strong contender for anyone seeking a powerful, feature-packed, and highly portable all-in-one sound reinforcement solution, offering excellent value and Peavey's signature reliability
