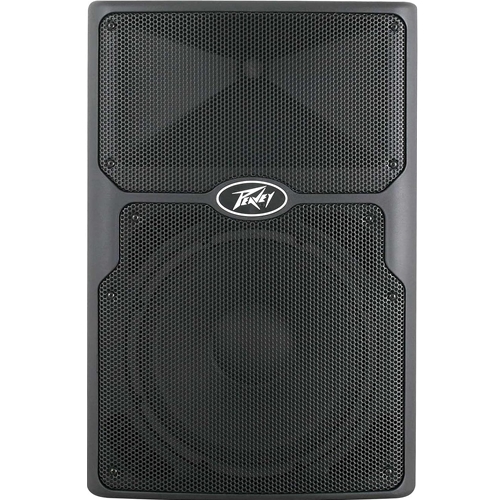

Peavey PVX12 - Passive Speaker 12" Two Way

The Peavey PVX 12 is a 12-inch, two-way passive loudspeaker from Peavey's PVX series, which is known for offering solid performance, robust construction, and good value for money. It's designed to be a versatile workhorse for live sound reinforcement in small to medium-sized venues, mobile DJ setups, presentations, and as stage monitors. As a passive speaker, it requires an external power amplifier.

Here's a detailed look at its key features and specifications:

Transducers and Acoustics:

• LF Transducer: Features a Peavey 12-inch heavy-duty woofer with a 2-3/8 inch voice coil, designed for robust low-frequency reproduction and power handling.

• HF Transducer: Coupled with a Peavey RX14 titanium diaphragm compression driver (1.4-inch titanium diaphragm, 1-inch throat), which delivers clear and articulate high frequencies.

• Constant Directivity Horn: The HF driver is loaded into a 90 x 40 constant directivity horn, which helps provide even and consistent sound dispersion across the listening area.

• Crossover Network: A professional-grade two-way crossover network with high-frequency protection.

Power Handling and Performance:

• Power Handling:

  • Program: 400 Watts

  • Peak: 800 WattsThis indicates it can handle a good amount of power. For optimal performance and longevity, it's generally recommended to pair it with an amplifier that can deliver continuous power close to the "Program" rating.

• Nominal Impedance: 8 Ohms, making it compatible with most standard power amplifiers.

• Sensitivity (1W/1m): 96 dB SPL. This is a good sensitivity rating, meaning it can produce significant volume with relatively moderate amplifier power.

• Frequency Response (-3 dB): 60 Hz to 18 kHz. This indicates a strong and usable full-range response.

• Frequency Range (-10 dB): 50 Hz to 20 kHz. This shows its extended low and high-frequency capabilities.

• Maximum SPL: 125 dB Peak SPL. This is a very respectable output level for a 12-inch passive speaker.

Enclosure and Durability:

• Construction: The cabinet is constructed from durable, lightweight, trapezoidal-shaped plastic (injection-molded polypropylene). This material is resistant to dents, scratches, and moisture, making it very suitable for portable applications.

• Finish: Textured black finish.

• Grille: A full-length, perforated steel grille provides comprehensive protection for the drivers from physical damage.

• Integrated Handles: Features multiple integrated handles for comfortable and secure carrying and transport.

Connectivity and Versatility:

• Connectors: Dual parallel NL4 (SpeakON compatible) input jacks, allowing for secure connections and easy daisy-chaining to other speakers or subwoofers.

• Pole Mount: Features a standard 1-3/8 inch (35 mm) pole mount adapter on the bottom for mounting on speaker stands.

• Wedge Design: The trapezoidal cabinet design allows it to be used effectively as a floor monitor, with the appropriate angle for performers.

• Flyable (Mounting Points): Three arrayable M8 mounting points are provided, allowing for permanent installation applications using eyebolts or other rigging hardware.

Applications:

• Main PA: Suitable for front-of-house (main speaker) applications in small to medium-sized venues.

• Stage Monitors: Excellent as floor monitors due to its wedge design and robust output.

• Mobile DJ Setups: Provides clear and punchy sound for music playback.

• Presentations and Public Address: Delivers clear and articulate speech reproduction.

• Rehearsal Spaces: A durable and reliable speaker for band practice.

The Peavey PVX 12 is a solid, no-nonsense passive loudspeaker that offers good sound quality, reliable performance, and excellent durability in a highly portable package. It's a popular choice for budget-conscious users who need a versatile speaker for various live sound needs.
